Jensen Twin Servo 990 Mic Preamp 2 Channel

Jensen Twin Servo 990 Mic Preamp 2-Channel:

Transformer enhanced technology for superior sonic performance. Bringing science to sound.

The Jensen Twin Servo 990 Mic Preamp is considered the world's finest mic preamp by audio experts. It's the ideal integration of advanced design software, hardware, engineering know-how, and carefully controlled 'golden ears' tests. It has earned high marks for sonic performance since its introduction in 1988.

The basic circuit was originally published as an application note by Jensen Transformers for their finest microphone input transformer, the JT-16-B. Each channel uses two precision 990C operational amplifier modules, developed and patented by Deane Jensen, to achieve one tenth the distortion and twice the bandwidth of a single stage design.

This special 2-channel version of the Jensen Twin Servo 990 Mic Preamp was originally developed for Sony Classical to provide high resolution switch-selectable gain control. It uses a 22 position rotary switch with gold plated contacts, providing a gain adjustment range of 18-60dB in steps of 2dB.

The Jensen Twin Servo 990 Mic Preamp has a 19" wide mainframe rack-mount chassis (1.75"H x 19"W x 8"D) and is only available as a fixed two channel version, unlike the standard version.

 Highlights:

• JT-16-B Input Transformer. Jensen's best mic input model.

• Two 990 Discrete Op-Amps Per Channel. Faster, quieter, more powerful and better sounding than typical monolithic op-amps.

• Elimination Of All Coupling Capacitors From The Signal Path. Results in less degradation of the audio signal.

• JT-11-BMQ Output Transformer. Jensen's best line output transformer.

• Input Bias Current Compensation Circuitry And DC Servo Circuitry. Eliminates signal degrading coupling capacitors.

 Standard Features:

• 22 Position Rotary Gain Switch. Provides accurate and repeatable gain settings from 18dB to 60dB in 2dB steps.

• 20 OHM MIC switch or 20dB PAD switch.

• POLARITY REVERSE switch.

• PHANTOM POWER switch.

• All Front Panel Switches Are LED Illuminated.

• Gold Plated XLR Connectors for maximum reliability.

• Ground Lift Switch On Each Channel. Helpful for eliminating ground loops.

• VU-1 meter. Very accurate and informative 20 segment LED meter, with separate Peak LED, for monitoring preamp output.

• Toroidal Power Transformer With Additional Shielding. Eliminates hum problems so no external power supply is needed.

• Universal Power Supply. Internal switch provides six primary voltage choices to accommodate use anywhere in the world.

• Chassis Ground Isolation Switch. Helpful for eliminating ground loops.

• Pin 2 Or Pin 3 High. Internal jumpers make changes in the field easy.


Jensen Twin Servo 990 Mic Preamp 2 Channel Detail

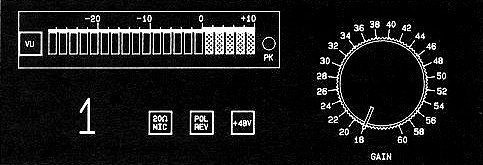

Jensen Twin Servo 990 2-Channel Version Channel Detail

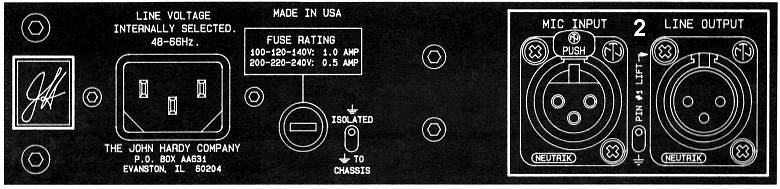

Jensen Twin Servo 990 Mic Preamp 2 Channel Back Panel
Jensen Twin Servo 990 2-Channel Version Back Panel Detail

 Specifications, typical (0dBu = 0.775V):

Voltage Gain Range +1dB 18 to 60 dB

E.I.N., 20-20kHz bandwidth, unweighted, 60dB gain, 0dBu = 0.775V 150 Ohm source -128.7 dBu

Frequency Response, ref: 1kHz 20Hz -0.05 typ, -0.1 max dB

20kHz -0.05 typ, -0.1 max dB

0.4Hz and 140kHz -3 dB



Time Domain Response


     Deviation From Linear Phase (maximum) 20Hz to 20kHz +2 deg
     Group Delay 20Hz to 120kHz 2.16 +0.05 µs
     Squarewave Risetime
2.2 µs
     Squarewave Tilt 20Hz 5.8 %



Total Harmonic Distortion (note 1)


     Output Level +4dBu, any gain setting 100Hz to 20kHz 0.001 typ, 0.003 max %
  20Hz 0.036 typ, 0.100 max %
     Input Level +8dBu (note 2) 100Hz to 20kHz 0.001 typ, 0.003 max %
  20Hz 0.120 typ, 0.300 max %

Common Mode Rejection Ratio 60Hz 125 dB

1kHz 100 dB

10kHz 80 dB

Common Mode Input Voltage
+300 V-pk

Optimum microphone Impedance (switch selectable)
150/20 Ohms



Input Impedance, +15% max 20Hz to 20kHz 1.27 k Ohms



Phantom Power


     Voltage
+52 VDC
     Current (maximum)
9.5 mA



Maximum Output Level 75 Ohm load +24 dBu



Output Load Impedance Range minimum/nominal 150/600 Ohms



Output Source Impedance 20Hz to 20kHz 70 +5 Ohms



Power Requirements, 4 Channels +15% 100, 120, 140, 200, 220, 240 VAC

48 to 66 Hz


25 Watts



Dimensions (note 3)
1.75H x 19W x 8D Inches



Notes :


     Unless otherwise specified: 25° C ambient, 150 Ohm source, 600 Ohm load.
     (1) Low frequency response distortion is almost entirely 3rd harmonic.
     (2) Worst case of maximum possible input at minimum gain with unclipped output.
     (3) Handles extend 1" beyond the front panel.
     "Twin Servo" is a registered trademark of Jensen Transformers, Inc.

©1997-2015 by The John Hardy Company - Unauthorized Use Prohibited!
